12v 24v DC Gear Motor Specifications ,Kinmore Motor

Product Description

12v 24v Dc gear motor Specifications ,Kinmore Motor


21 years' motor design and production experience
90 million-piece annual capacity
Auto motors are almost entirely produced on automated lines
Facilities certified to IAFT16949:2016,ISO 9001:2008 and ISO 14001:2004
Advanced equipment from Sodick, Hexagon,Mitutoyo, Magtrol and Votsch
10% sales revenue invested in R&D and automatic equipment every year
Customer PPM: auto motors s 30;general motors s 3,000

Product Description

12v 24v DC Gear Motor Specifications ,Kinmore Motor



12v 24v DC Gear Motor Specifications ,Kinmore Motor


1.1.Motor Size:L24.2*W10.0*H12.0mm

1.2.Motor Position: To be measured with motor horizontally held.

1.3.Environmental temperature: +5°C~+35°C

1.4.Environmental humidity: 40%~85%RH

12v 24v DC Gear Motor Specifications ,Kinmore Motor

12v 24v DC Gear Motor Specifications ,Kinmore Motor


12v 24v DC Gear Motor Specifications ,Kinmore Motor

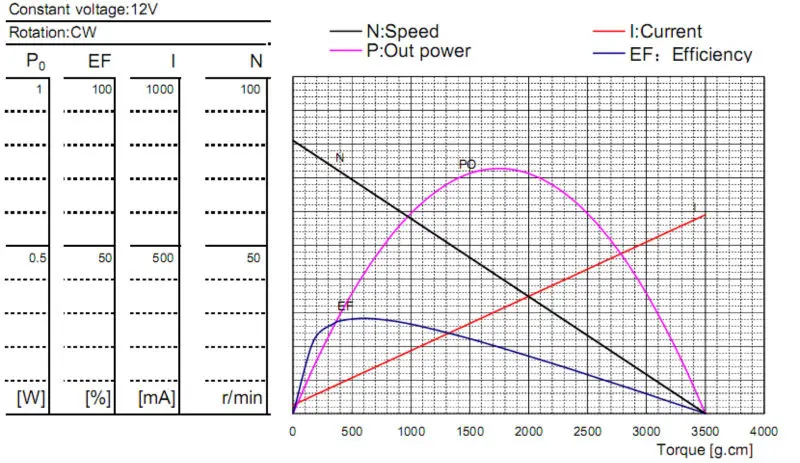

2.1.At No load

      2.1.1.Speed:     81 ± 10% rpm

       2.1.2.Current:   ≤ 40 mA

2.2.At On load

       2.2.1.Torque:    1.45

       2.2.2.Speed:     49 ± 10% rpm

       2.2.3.Current:   ≤ 320 mA

2.3.At Stall

       2.3.1.Torque:      ≥ 2800

       2.3.2.Current:     ≤  850  mA

2.4. End Play:0.05~0.45mm

2.5. Operating Temperture:-10°C~+60°C



RatioModel No.VoltageNo Load On Load
Unit Conversion:   1mm=0.039in   1g=0.035oz


Remark: The above technical data are only for reference, which can be customized according to different requirements after evaluation.



12v 24v DC Gear Motor Specifications ,Kinmore Motor

DC Motors">
More DC motors

Kinmore  The most complete DC Motor supplier.

12v 24v DC Gear Motor Specifications ,Kinmore Motor

Company Information

12v 24v DC Gear Motor Specifications ,Kinmore Motor


12v 24v DC Gear Motor Specifications ,Kinmore Motor12v 24v DC Gear Motor Specifications ,Kinmore Motor


Q:1.What kind of motors you can provide?

A: For now, we mainly provide permanent magnet brushed dc motors (including vibration motors, low voltage dc motors and high voltage dc motors) with diameter range in 6~80mm and also Dia10~80mm size gear motors.

Q:2. Can you send me a price list?

A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.

Q:3. What's the lead time for regular order?

A: For orders, the standard lead time is 35-40 days and this time can be shorter or longer based on different model, period and quantity.

Q:4. Is it possible for you to develop new motors if we can provide tooling cost?

A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.

Q:5. Can I get some samples?

A: It depends. If only a few samples for personal use or replacement, I am afraid it'll be difficult for us to provide because all of our motors are custom made and no stock available if there is no further needs. If just sample testing before the official order and our MOQ, price and Other terms are acceptable, we'd love to provide samples.

Contact us if you need more details on 12v Dc Motor Specifications. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 24v Dc Motors Specifications、12v Dc Gear Motor Specifications. If these products fail to match your need, please contact us and we would like to provide relevant information.
